Structured Prediction

Author

CVXPY Developers and Balasubramanian Narasimhan

Introduction

Warning

The derivative functionality (backward, derivative, gradient, delta) is not implemented in CVXR at this time. The gradient descent training loop below illustrates the intended API based on CVXPY but is not executable.

In this example, we fit a regression model to structured data, using a log-log convex program (LLCP). The training dataset $D$ contains $N$ input-output pairs $(x, y)$ , where $x \in R_{+ +}^{n}$ is an input and $y \in R_{+ +}^{m}$ is an output. The entries of each output $y$ are sorted in ascending order, meaning $y_{1} \leq y_{2} \leq \dots \leq y_{m}$ .

Our regression model $ϕ : R_{+ +}^{n} \to R_{+ +}^{m}$ takes as input a vector $x \in R_{+ +}^{n}$ , and solves an LLCP to produce a prediction $\hat{y} \in R_{+ +}^{m}$ . In particular, the solution of the LLCP is the model’s prediction. The model is of the form

$\begin{array}{lll} ϕ (x) = & argmin & 1^{T} (z / y + y / z) \\ subject to & y_{i} \leq y_{i + 1}, i = 1, \dots, m - 1 \\ z_{i} = c_{i} x_{1}^{A_{i 1}} x_{2}^{A_{i 2}} \dots x_{n}^{A_{i n}}, i = 1, \dots, m . \end{array}$

Here, the minimization is over $y \in R_{+ +}^{m}$ and an auxiliary variable $z \in R_{+ +}^{m}$ , $ϕ (x)$ is the optimal value of $y$ , and the parameters are $c \in R_{+ +}^{m}$ and $A \in R^{m \times n}$ . The ratios in the objective are meant elementwise. Given a vector $x$ , this model finds a sorted vector $\hat{y}$ whose entries are close to monomial functions of $x$ (which are the entries of $z$ ), as measured by the fractional error.

The training loss $L (ϕ)$ of the model on the training set is the mean squared loss

$L (ϕ) = \frac{1}{N} \sum_{(x, y) \in D} ∥ y - ϕ (x) ∥_{2}^{2} .$

We fit the parameters $c$ and $A$ by an iterative projected gradient descent method on $L (ϕ)$ . In each iteration, we first compute predictions $ϕ (x)$ for each input in the training set; this requires solving $N$ LLCPs. Next, we evaluate the training loss $L (ϕ)$ . To update the parameters, we compute the gradient $\nabla L (ϕ)$ of the training loss with respect to the parameters $c$ and $A$ . This requires differentiating through the solution map of the LLCP.

This example is described in the paper Differentiating through Log-Log Convex Programs.

Data Generation

We generate synthetic data by choosing a true $A$ and $c$ , generating lognormal inputs, and solving the LLCP with the true parameters to produce sorted outputs.

n <- 20   # input dimension
m <- 10   # output dimension
N <- 100  # number of training pairs
N_val <- 50  # number of validation pairs

set.seed(243)

## True parameters
A_true <- matrix(rnorm(m * n), nrow = m, ncol = n) / 10
c_true <- abs(rnorm(m))

generate_data <- function(num_points, seed) {
    set.seed(seed)

    ## Generate lognormal inputs
    inputs <- matrix(exp(rnorm(num_points * n)), nrow = num_points, ncol = n)

    ## For each input, solve the LLCP with true parameters to get output
    input_p <- Parameter(n, pos = TRUE)
    prediction <- multiply(c_true, gmatmul(A_true, input_p))
    y_var <- Variable(m, pos = TRUE)
    obj_fn <- sum_entries(prediction / y_var + y_var / prediction)
    cons <- lapply(seq_len(m - 1), function(i) y_var[i] <= y_var[i + 1])
    prob <- Problem(Minimize(obj_fn), cons)

    outputs <- matrix(0, nrow = num_points, ncol = m)
    for (i in seq_len(num_points)) {
        value(input_p) <- inputs[i, ]
        psolve(prob, gp = TRUE)
        outputs[i, ] <- value(y_var)
    }
    list(inputs = inputs, outputs = outputs)
}

train_data <- generate_data(N, 243)
train_inputs  <- train_data$inputs
train_outputs <- train_data$outputs

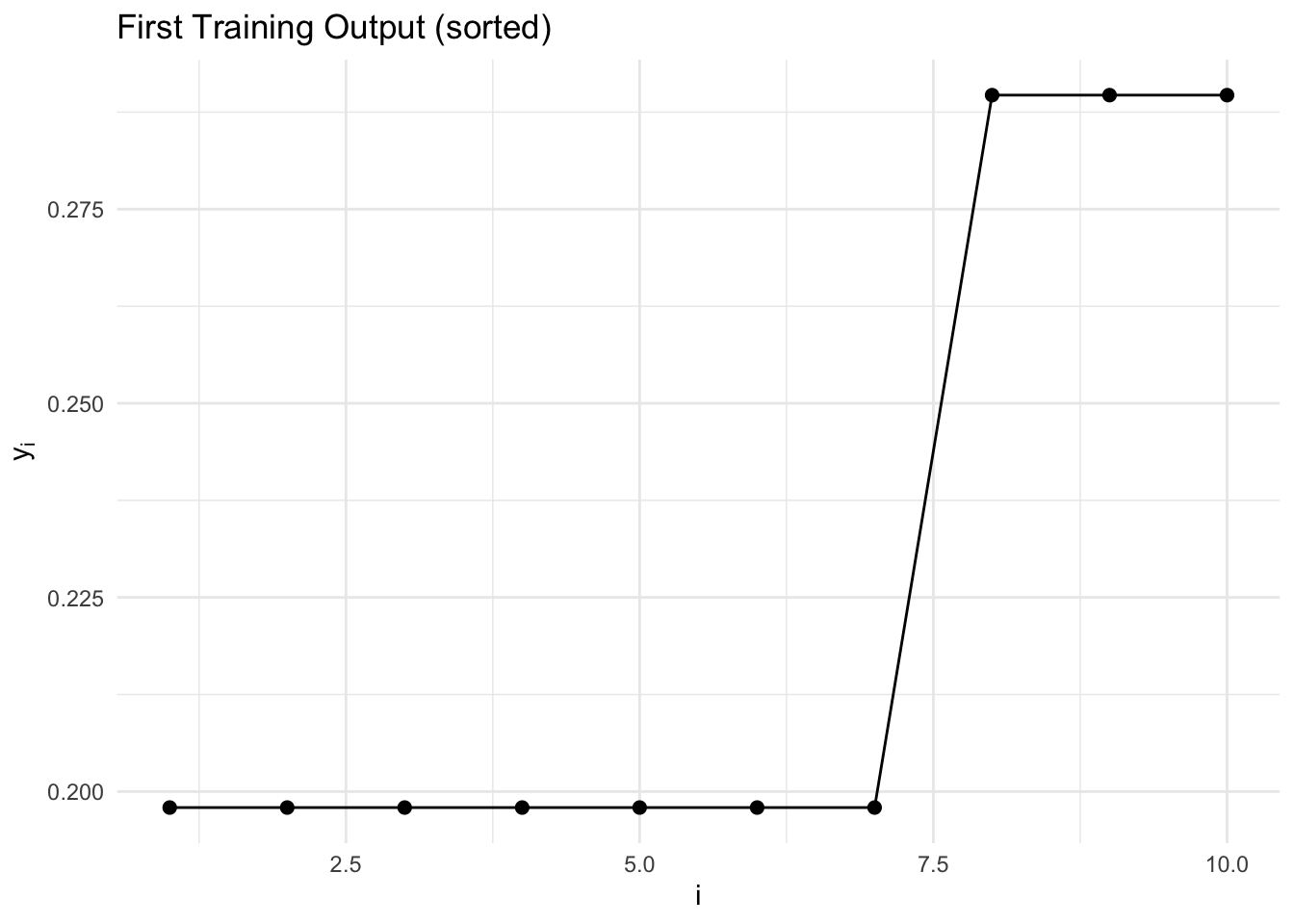

plot(train_outputs[1, ], type = "o", pch = 16,
     xlab = "i", ylab = expression(y[i]),
     main = "First Training Output (sorted)")

val_data <- generate_data(N_val, 0)
val_inputs  <- val_data$inputs
val_outputs <- val_data$outputs

Monomial Fit to Each Component

We initialize the parameters in our LLCP model by fitting monomials to the training data, without enforcing the monotonicity constraint. This is a standard least squares problem in log space.

log_outputs <- t(log(train_outputs))  # m x N
log_inputs  <- t(log(train_inputs))   # n x N

## Solve: log_outputs ≈ theta^T %*% log_inputs + log_c %*% ones^T
## Variables: theta (n x m), log_c (m x 1)
theta <- Variable(c(n, m))
log_c <- Variable(c(m, 1))
offsets <- do.call(cbind, replicate(N, log_c, simplify = FALSE))  # m x N
cp_preds <- t(theta) %*% log_inputs + offsets   # m x N
lstsq_obj <- (1 / N) * sum_squares(cp_preds - log_outputs)
lstsq_problem <- Problem(Minimize(lstsq_obj))

lstsq_result <- psolve(lstsq_problem, verbose = TRUE)
cat(sprintf("Least squares fit: %f\n", lstsq_result))

## Extract initialized parameters
A_init <- t(value(theta))    # m x n
c_init <- exp(value(log_c))  # m x 1

Fitting with the LLCP Model

We now set up the parameterized LLCP and iteratively fit the parameters using gradient descent with the backward method.

A_param <- Parameter(c(m, n))
c_param <- Parameter(m, pos = TRUE)
x_slack <- Variable(n, pos = TRUE)
x_param <- Parameter(n, pos = TRUE)
y <- Variable(m, pos = TRUE)

prediction <- multiply(c_param, gmatmul(A_param, x_slack))
obj_fn <- sum_entries(prediction / y + y / prediction)
cons <- c(list(x_slack == x_param),
          lapply(seq_len(m - 1), function(i) y[i] <= y[i + 1]))
problem <- Problem(Minimize(obj_fn), cons)

cat(sprintf("Is DGP: %s\n", is_dgp(problem)))

We run projected gradient descent. In each epoch, for every training example, we solve the LLCP, compute the gradient of the squared loss with respect to $A$ and $c$ via backward, and accumulate the gradients. We then update the parameters.

## Initialize parameters from the monomial fit
A_current <- A_init
c_current <- as.vector(c_init)

lr <- 5e-2  # learning rate
n_epochs <- 10

train_losses <- numeric(n_epochs)
val_losses   <- numeric(n_epochs)

for (epoch in seq_len(n_epochs)) {
    ## -- Training pass --
    A_grad_accum <- matrix(0, m, n)
    c_grad_accum <- numeric(m)
    train_loss <- 0

    for (i in seq_len(N)) {
        value(A_param) <- A_current
        value(c_param) <- c_current
        value(x_param) <- train_inputs[i, ]

        psolve(problem, gp = TRUE, requires_grad = TRUE)
        y_pred <- value(y)
        residual <- y_pred - train_outputs[i, ]
        train_loss <- train_loss + sum(residual^2)

        ## Set gradient of y to d(loss)/d(y) = 2 * residual / N
        gradient(y) <- 2 * residual / N
        backward(problem)

        A_grad_accum <- A_grad_accum + gradient(A_param)
        c_grad_accum <- c_grad_accum + gradient(c_param)
    }
    train_losses[epoch] <- train_loss / N

    ## -- Validation pass (no gradients needed) --
    val_loss <- 0
    for (i in seq_len(N_val)) {
        value(A_param) <- A_current
        value(c_param) <- c_current
        value(x_param) <- val_inputs[i, ]
        psolve(problem, gp = TRUE)
        y_pred <- value(y)
        val_loss <- val_loss + sum((y_pred - val_outputs[i, ])^2)
    }
    val_losses[epoch] <- val_loss / N_val

    cat(sprintf("(epoch %d) train / val (%.4f / %.4f)\n",
                epoch, train_losses[epoch], val_losses[epoch]))

    ## -- Update parameters --
    A_current <- A_current - lr * A_grad_accum
    c_current <- c_current - lr * c_grad_accum
    ## Project c to stay positive
    c_current <- pmax(c_current, 1e-8)
}

Comparing Predictions

We compare the LLCP model predictions (with fitted parameters) to the true outputs on a validation example.

## Compute LLCP predictions on a validation example
val_idx <- 1
value(A_param) <- A_current
value(c_param) <- c_current
value(x_param) <- val_inputs[val_idx, ]
psolve(problem, gp = TRUE)
llcp_pred <- value(y)

## Compute least-squares monomial predictions (no monotonicity)
lstsq_pred <- as.vector(c_init) *
    exp(A_init %*% log(val_inputs[val_idx, ]))

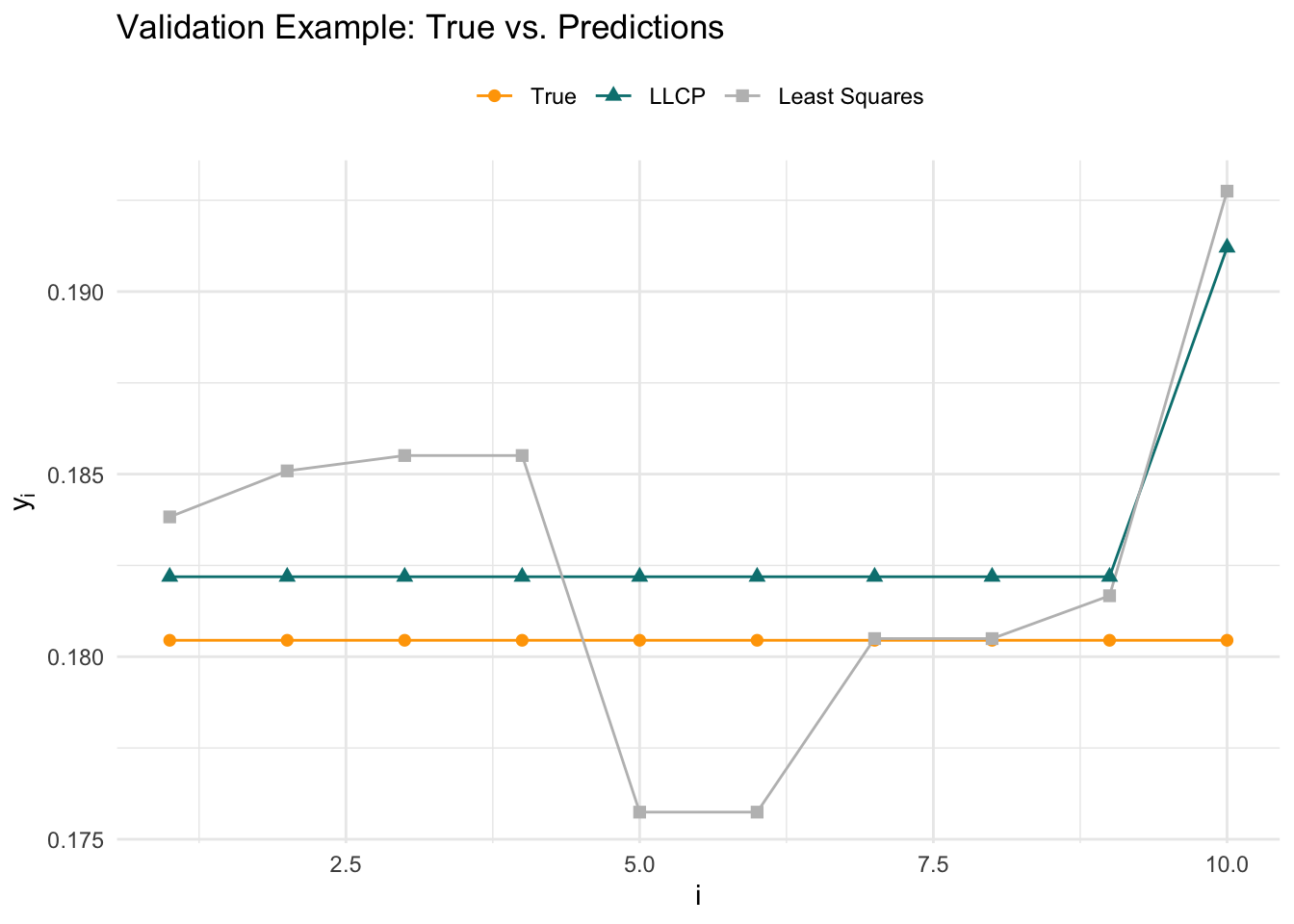

plot(val_outputs[val_idx, ], type = "o", pch = 16, col = "orange",
     xlab = "i", ylab = expression(y[i]),
     main = "Validation Example: True vs. Predictions",
     ylim = range(c(val_outputs[val_idx, ], llcp_pred, lstsq_pred)))
lines(llcp_pred, type = "o", pch = 17, col = "teal")
lines(lstsq_pred, type = "o", pch = 15, col = "gray", lty = 2)
legend("topleft",
       legend = c("True", "LLCP", "Least Squares"),
       col = c("orange", "teal", "gray"),
       pch = c(16, 17, 15), lty = c(1, 1, 2))
