Sparse Inverse Covariance Estimation

Introduction

Assume we are given i.i.d. observations \(x_i \sim N(0,\Sigma)\) for \(i = 1,\ldots,m\), and the covariance matrix \(\Sigma \in {\mathbf S}_+^n\), the set of symmetric positive semidefinite matrices, has a sparse inverse \(S = \Sigma^{-1}\). Let \(Q = \frac{1}{m-1}\sum_{i=1}^m (x_i - \bar x)(x_i - \bar x)^T\) be our sample covariance. One way to estimate \(\Sigma\) is to maximize the log-likelihood with the prior knowledge that \(S\) is sparse (Friedman, Hastie, and Tibshirani 2008), which amounts to the optimization problem:

\[ \begin{array}{ll} \underset{S}{\mbox{maximize}} & \log\det(S) - \mbox{tr}(SQ) \\ \mbox{subject to} & S \in {\mathbf S}_+^n, \quad \sum_{i=1}^n \sum_{j=1}^n |S_{ij}| \leq \alpha. \end{array} \]

The parameter \(\alpha \geq 0\) controls the degree of sparsity. The problem is convex, so we can solve it using CVXR.

Example

We’ll create a sparse positive semi-definite matrix \(S\) using synthetic data

set.seed(1)
n <- 10      ## Dimension of matrix
m <- 1000    ## Number of samples

## Create sparse, symmetric PSD matrix S
A <- rsparsematrix(n, n, 0.15, rand.x = stats::rnorm)
Strue <- A %*% t(A) + 0.05 * diag(rep(1, n))    ## Force matrix to be strictly positive definite

We can now create the covariance matrix \(R\) as the inverse of \(S\).

R <- base::solve(Strue)

As test data, we sample from a multivariate normal with the fact that if \(Y \sim N(0, I)\), then \(R^{1/2}Y \sim N(0, R)\) since \(R\) is symmetric.

x_sample <- matrix(stats::rnorm(n * m), nrow = m, ncol = n) %*% t(expm::sqrtm(R))
Q <- cov(x_sample)    ## Sample covariance matrix

Finally, we solve our convex program for a set of \(\alpha\) values.

Positive semi-definite variables are designated using PSD = TRUE.

alphas <- c(10, 8, 6, 4, 1)
S <- Variable(c(n, n), PSD = TRUE)

obj <- Maximize(log_det(S) - matrix_trace(S %*% Q))

S.est <- lapply(alphas,
                function(alpha) {
                    constraints <- list(sum(abs(S)) <= alpha)
                    ## Form and solve optimization problem
                    prob <- Problem(obj, constraints)
                    result <- psolve(prob)
                    check_solver_status(prob)

                    ## Create covariance matrix
                    R_hat <- base::solve(value(S))
                    Sres <- value(S)
                    Sres[abs(Sres) <= 1e-4] <- 0
                    Sres
                })

In the code above, the PSD = TRUE attribute restricts S to the positive semidefinite cone. In our objective, we use CVXR functions for the log-determinant and trace. The expression matrix_trace(S %*% Q) is equivalent to `sum(diag(S %*% Q))}, but the former is preferred because it is more efficient than making nested function calls.

However, a standalone atom does not exist for the determinant, so we cannot replace log_det(S) with log(det(S)) since det is undefined for a PSD variable object.

Results

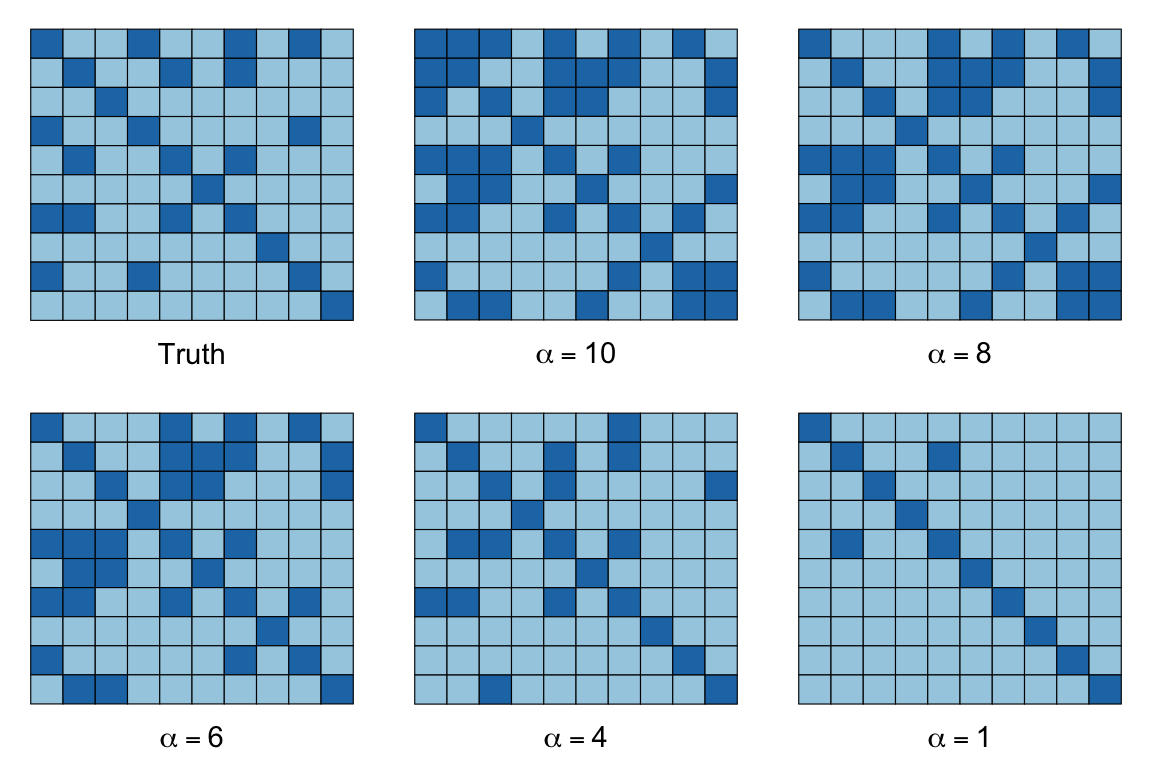

The figures below depict the solutions for the above dataset with \(m = 1000, n = 10\), and \(S\) containing 26% non-zero entries, represented by the dark squares in the images below. The sparsity of our inverse covariance estimate decreases for higher \(\alpha\), so that when \(\alpha = 1\), most of the off-diagonal entries are zero, while if \(\alpha = 10\), over half the matrix is dense. At \(\alpha = 4\), we achieve the true percentage of non-zeros.
